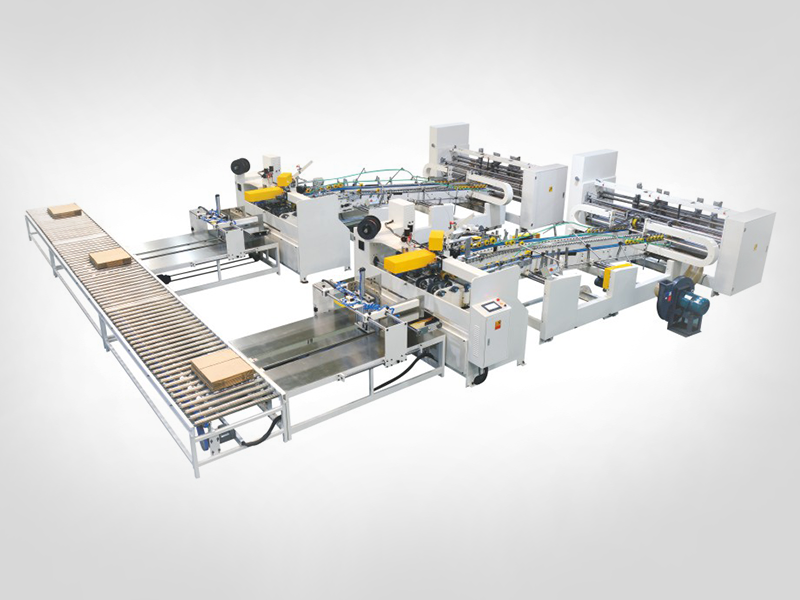

Double Pcs Stitcher For Small Carton AXD-029D
Current Location:Products >> Double Pcs Stitcher For Small Carton AXD-029D >> View Contents
    product1
Details

Detailed description about double pcs stitcher for small corrugated carton:



1.1). Application:

The double pcs stitcher is used to stitch small double-sheet carton.



1.2). Main characteristics

1. Single nail, double nails or strengthened nail can be nailed "

2. Sheet-conveying part counts automatically and send the bundle to bind

3. The position to nail the first nail: 25mm

4. Max. Slotted nail length: 600mm

5. Suitable wire to nail: 17#, 18#

6. Stitching pitch (small ~big): 30~120mm

7. Mechanical speed: 500 stitches/minute

8. Wire-sending length of nailing wire: 36mm

9. Fast change size within one minute

10. Easy operation, experience is not required

11. Sheet-conveying part counts automatically and send the bundle to bind

12. Touch screen operation

13. Adopting servo system

14. Size can be controlled automatically, touch screen display and fault instruction

15. Suitable to nail/stitch three-layer and five-layer small cartons with/without cover

16. Adopting servo system



1.3). Main technical data:



Item

Description

Model AXD-029D

1

Max. sheet size, namely (A+B)

1800mm

2

Min. sheet size, namely (A+B)

530mm

3

Max. sheet length, namely A

1650mm

4

Min. sheet length, namely A

350mm

5

Max. Sheet width, namely B

900mm

6

Min. Sheet width, namely B

180mm

7

Min. Sheet height, namely C+D+C

400mm

8

Stitching pitch

30~120mm

9

No. Of stitches

1~ 99 nails

10

Machine speed

500 nails/minute

11

Driven motor

15HP

12

Machine total length

2200mm

13

Machine total width

3120mm

14

Machine weight

4000kg




1.4). Brands of the main parts mounted on the machine

1. Servo system

a. Servo motor: Japan YASKAWA

b. Motor: Hangxin  in Taiwan

c. Gear motor reducer: Hang xin  in Taiwan

d. PLC controller: OMRON

e. Touch screen: WEINVIEW  in Taiwan

2. Electrical control system

a. Circuit breaker: SHIHLIN  in Taiwan

b. Contactor: SHIHLIN  in Taiwan

c. Thermal relay: SHIHLIN  in Taiwan

d. Photoelectric switch: FOTEK

e. Travel switch: TEND  in Taiwan

f. Button: TEND made in Taiwan

g. Intermediate relay: SCHNEIDER

3. Gas channel system:

a. Cylinder: AIRTAC

b. Electromagnetic valve: AIRTAC

4. Transmission system:

a. Belts: THREE FIVE in taiwan

5. Bearing: UBC MZD TR
